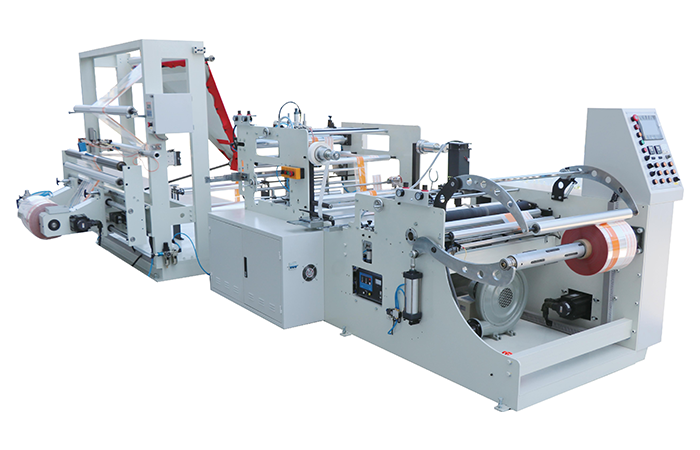

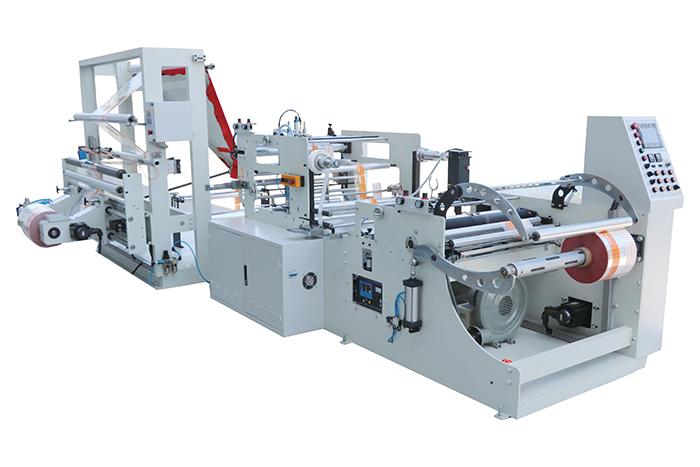

HM-ZBD MULTIFUNCTIONAL FOLDING AND EDGE SEALING MACHINE

HM-ZBD MULTIFUNCTIONAL FOLDING AND EDGE SEALING MACHINE

Product Details

HM-ZBD MULTIFUNCTIONAL FOLDING AND EDGE SEALING MACHINE

1.Designed for center folding and heat sealing of OPP, CPP, PE, and POF films. Easy to operate with a stable structure; synchronized unwinding and rewinding ensure fast running and flat output.

2.Material handling uses a pneumatic airshaft clamping system, with an air-assisted automatic loading/lifting unit for faster roll changes. Unwinding/rewinding adopt automatic servo constant tension control,

combined with servo motor traction and EPC automatic correction, significantly reducing setup and alignment time while keeping film running stable.

3.Supports multiple optional functions: bottom gusseting, pearl-film header unit, ultrasonic welding, and gluing/tape application, providing strong expandability.

4.Equipped with a multifunction controller for parameter setting and operation management; automatic counting is available for easier output statistics.

MODEL PCS/MIN BAG WIDTH L W H
HM-ZBDI400 180     700mm 2250mm 2200mm 1 650mm
HM-ZBD1600 180     800mm 2300mm 2250mm 1 650mm
