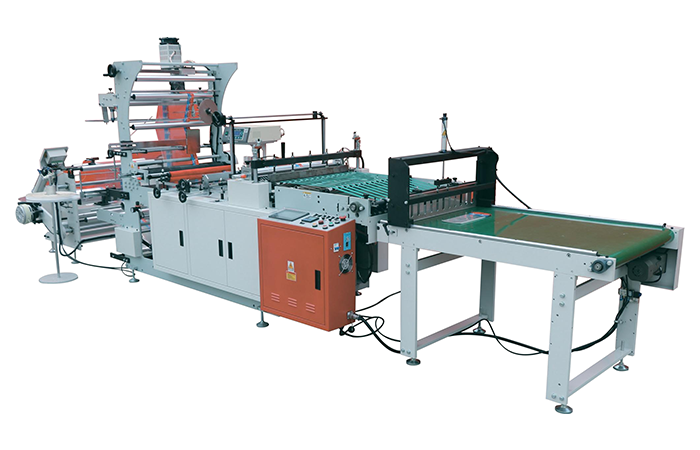

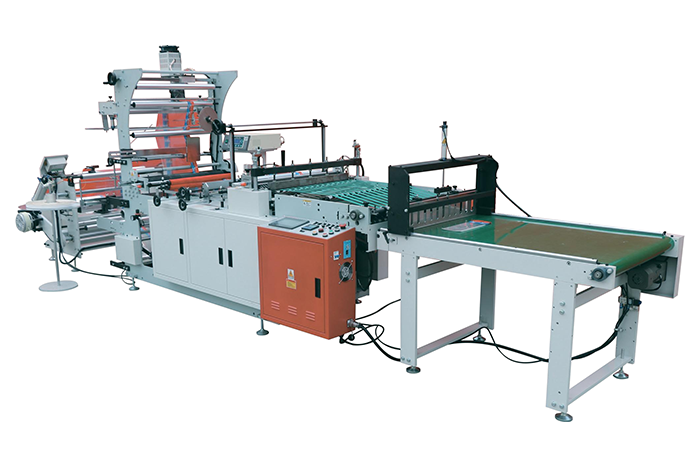

HM-RB AUTOMATIC SIDE SEALING AND CUTTING BAG MAKING MACHINE
- FEATURES
1.Servo-driven film feeding with inverter speed control for smooth running and stable high-speed output.
2.Unwinding adopts magnetic powder constant tension control together with EPC automatic correction, improving alignment accuracy and reducing waste.
3.Supports multiple optional functions: W-bottom insertion, pearl-film header unit, punching, photoelectric tracking, ultrasonic welding, and gluing/tape application, providing strong expandability.
4.Optimized folding unit for easier operation; capable of producing 12+ bag types steadily for various applications.
- APPLICABLE MATERIALS
BOPP, CPP, LDPE, PE, POF, laminated/composite film, etc.
- USAGE
Stationery bags, jewelry bags, garment bags, food bags, hanging bags, and other side-sealing bags.
| MODEL | MAX.WIDTH | MAX. LENGTH | SPEED(PCS/MIN) | FILM THICKNESS | |||||||||||||||||||||||||
| HM-RB500 | 500mm | 750mm | 300 | 0. 02-0. 1 0mm | |||||||||||||||||||||||||
| HM-RB800 | 800mm | 750mm | 250 | 0. 02-0. 1 0mm | |||||||||||||||||||||||||
| HM-RB1 000 | 1 000mm | 750mm | 200 | 0. 02-0. 1 0mm | |||||||||||||||||||||||||
